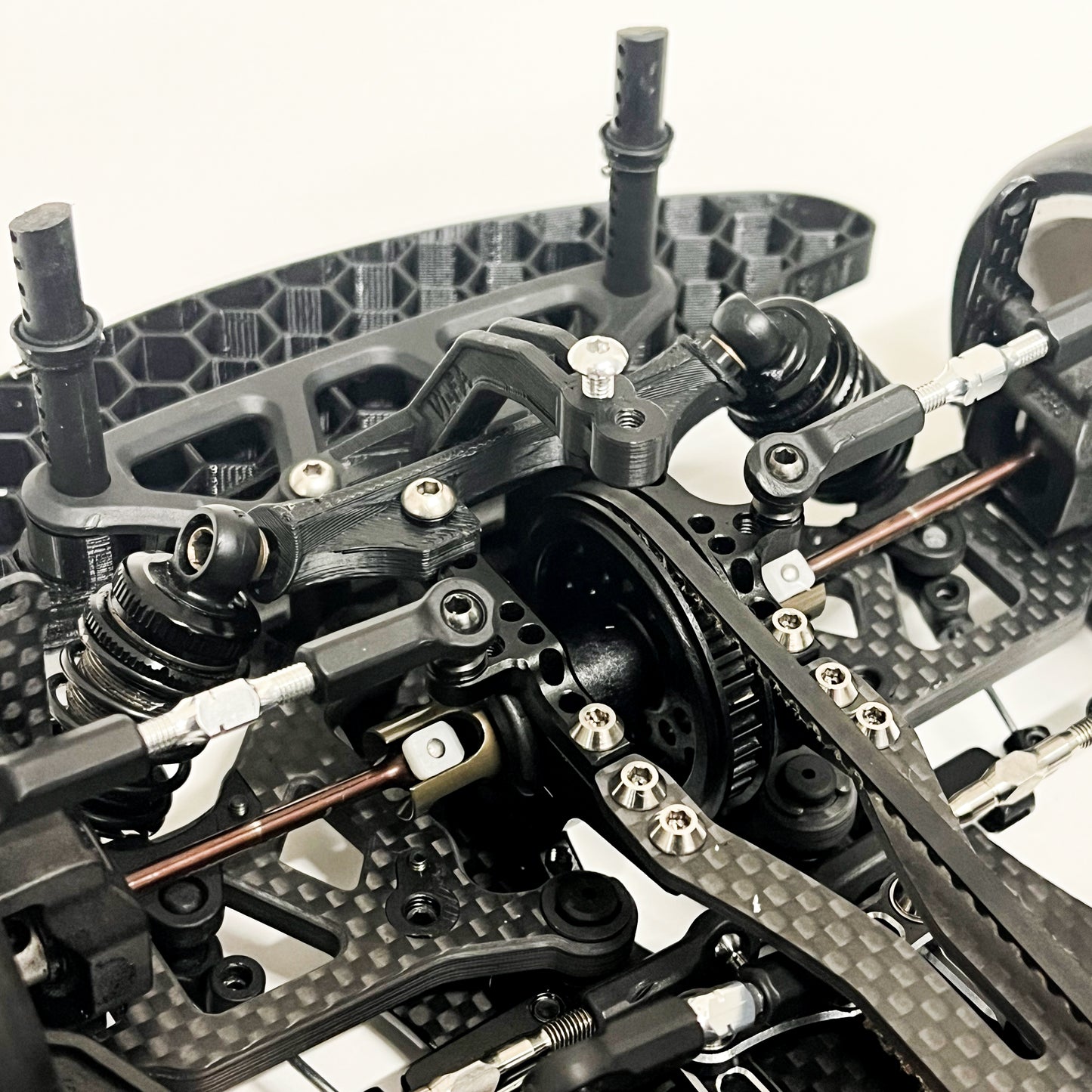

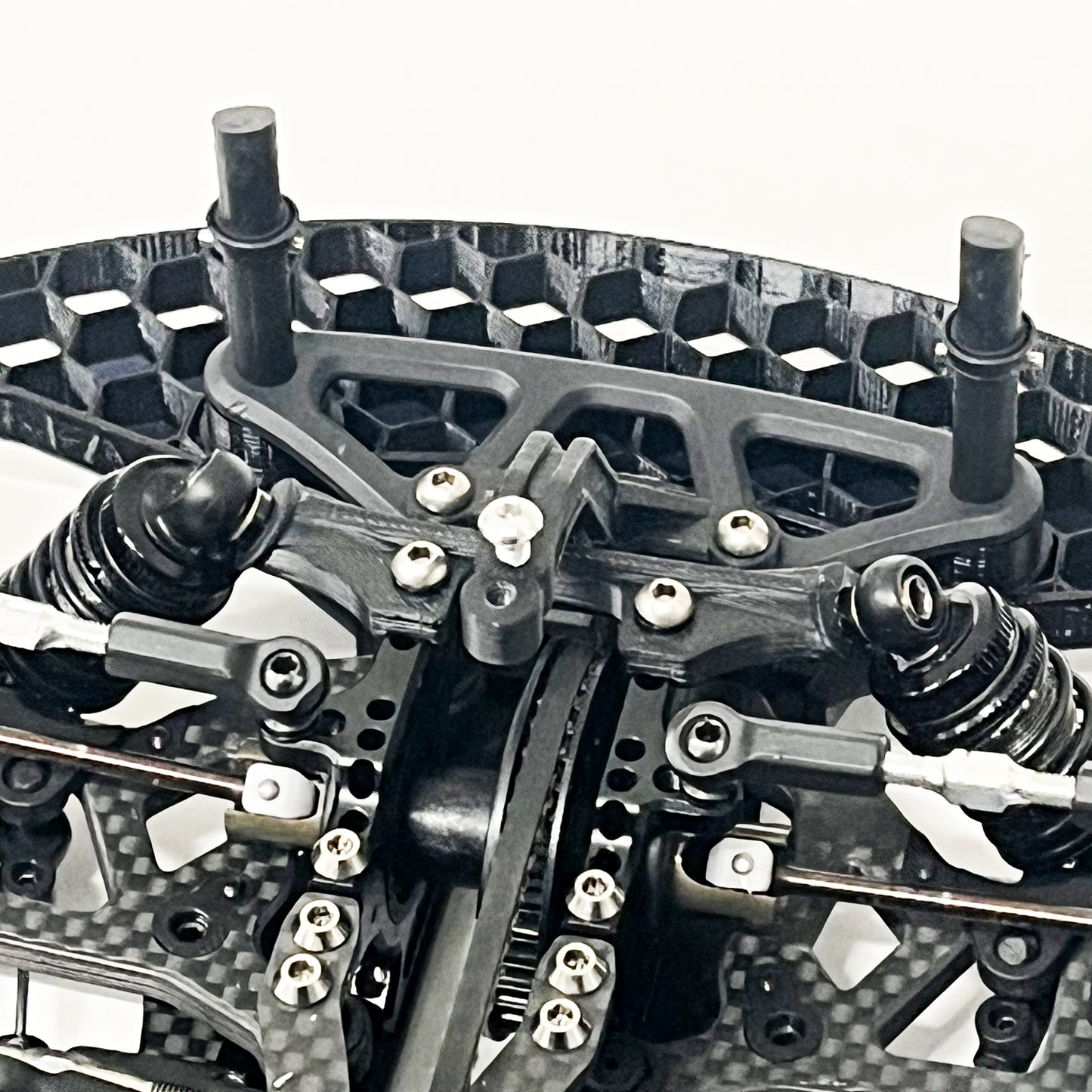

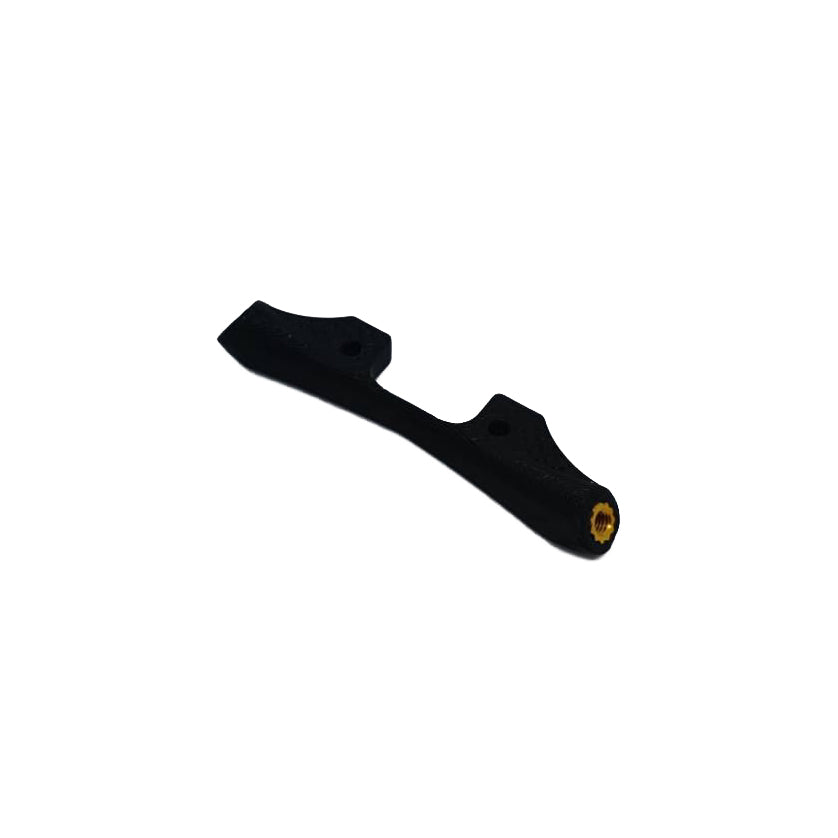

Front damper stay (BD12/11)

Front damper stay (BD12/11)

Regular price ¥1,480 JPY
Regular price ¥0 JPY Sale price ¥1,480 JPY
Sale Sold out
Tax included. Shipping calculated at checkout.

The damper angle can be set continuously to expand the range of adjustment.

Metal nuts are used in areas where stress is applied to the damper mounting section.

Made of resin that is both highly durable and heat resistant.

Contents: 1 damper stay

Fits: BD12/BD11

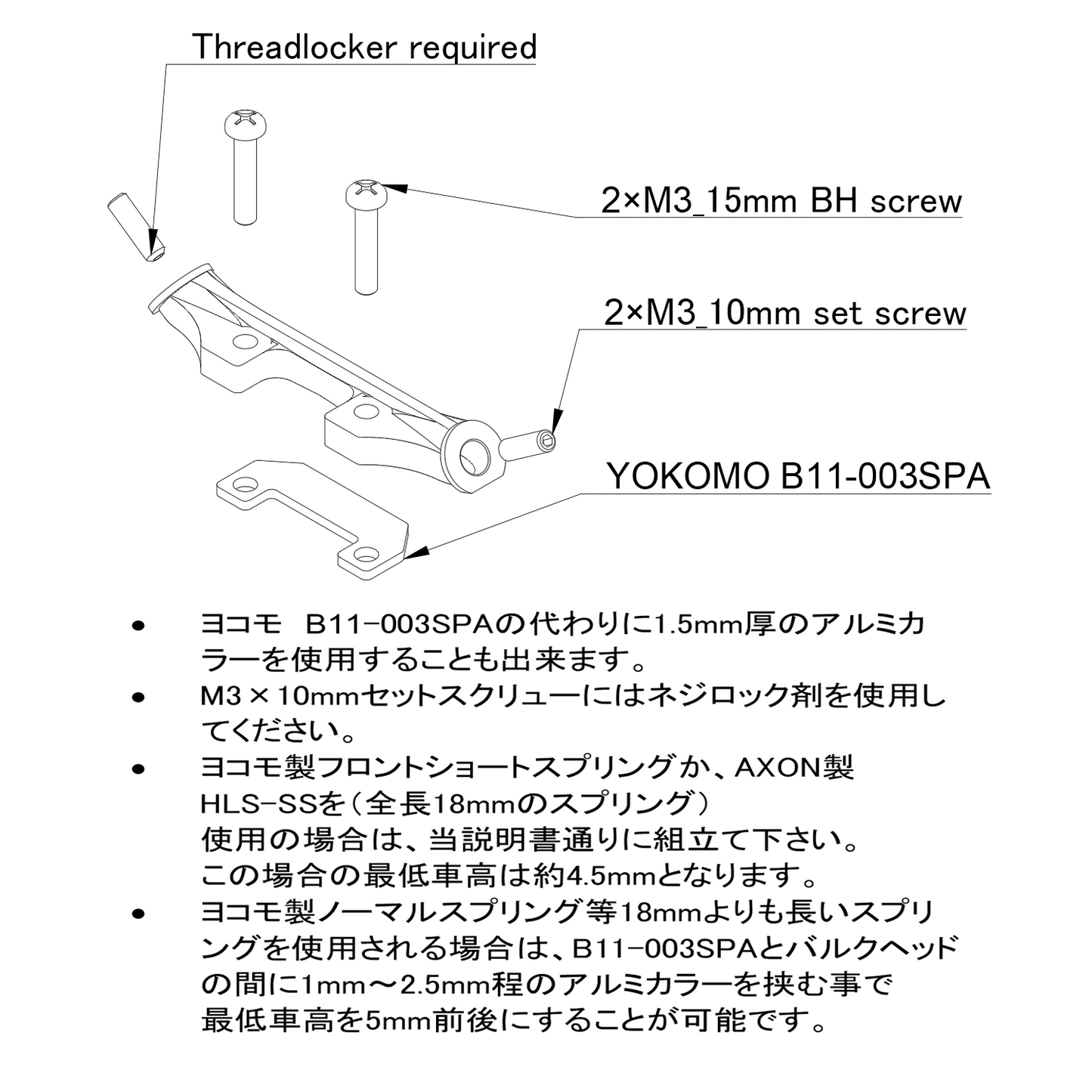

Required items (please prepare by yourself)

  • M3 x 15mm button head screws x 2 (for fixing the damper stay)
  • M3 x 10mm set screw x 2 (for fixing the damper)
  • A small amount of thread locking agent (apply to M3 x 10 set screw)
  • B11-003SPA x 1 (1.5mm thick aluminum collar can be used instead)
  • M3 aluminum collar x appropriate amount (for adjusting the damper angle)


The resin used has the following characteristics:

Currently it is the third batch.

-Excellent toughness

・Shock resistance

- Bending resistance

-High safety for the human body

3rd lot: Breaking elongation value 911

Second lot: Breaking elongation value 238

First lot: Breaking elongation value 118

*Since it has low heat resistance, please use it in an ambient temperature of 60 degrees or below.

High temperatures and direct sunlight can cause deformation.
